Description

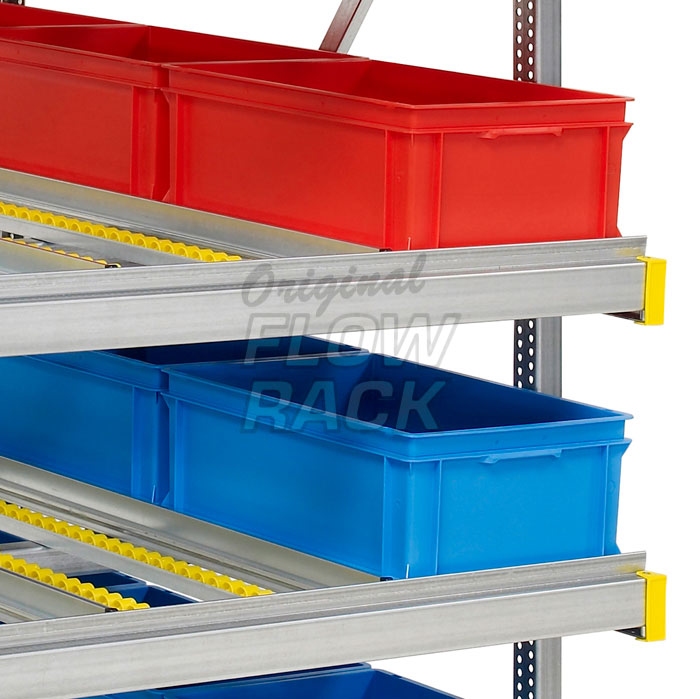

Durable roller tracks with solid steel axles.
As start section and as extended section.
Build your own rack length.

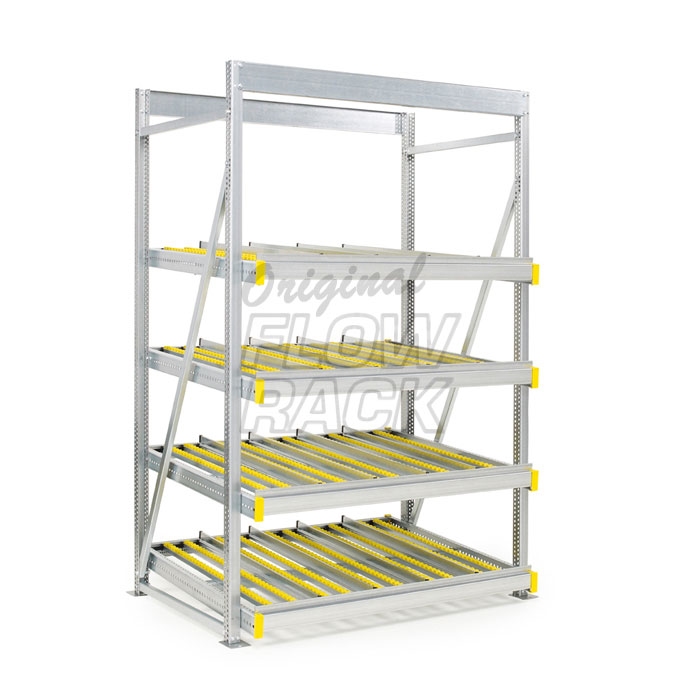

Dimensions flow rack

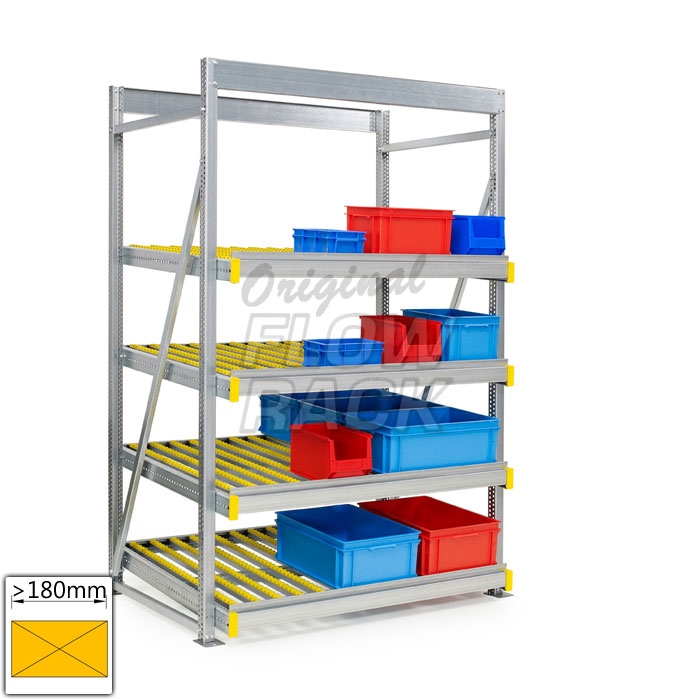

1. Bay width (picture): 1390 mm. Choose between 1390, 1790 and 2690 mm.
2. Depth (picture): 1230 mm. A broad choice between 1230 to 3030 mm.
3. Height (picture): 2304 mm. Choose between 2304 and 2504 mm.
Post width 50 mm.
(bay width is the measurement between the posts)
Roller tracks and guide strips are easily adjustable by hand.
Height and slope are perfectly adjustable to your situation.
Most commonly used flow rack
Bay width 1390 and 1790 mm.
Depth 1230, 1830 or 2430 mm (net storage depth 1200, 1800, 2400 mm).
Roller tracks and corner caps in the colour yellow.
Flow rack finish
All profiles of galvanized steel.
Roller tracks in yellow or black (also deliverable as anti-static).
Corner caps in yellow, black or red.
Boxes and bins

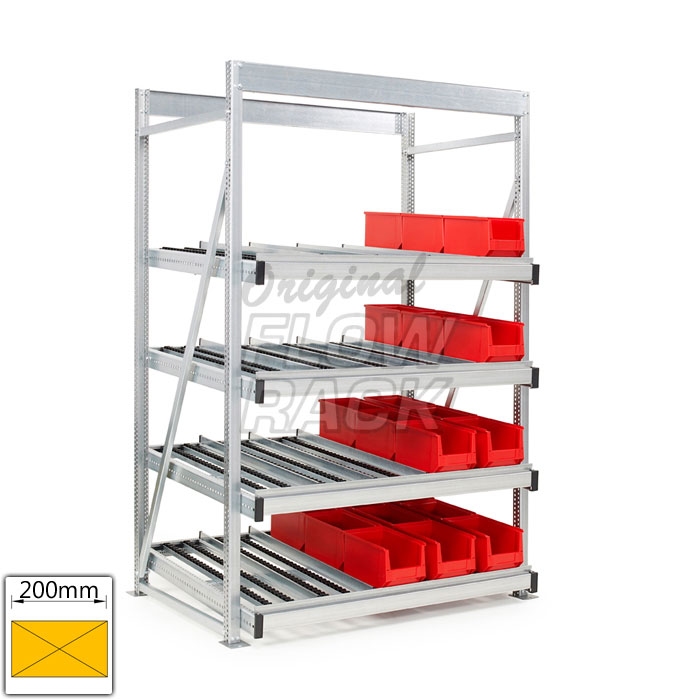

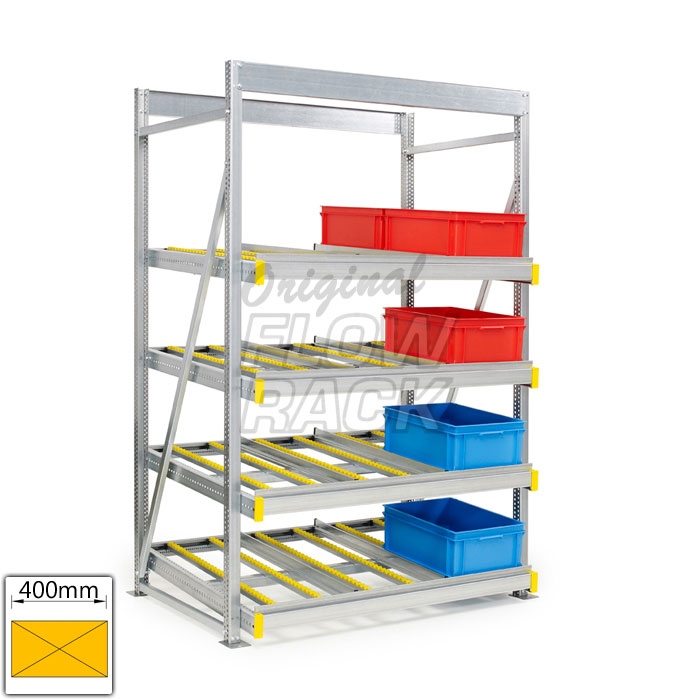

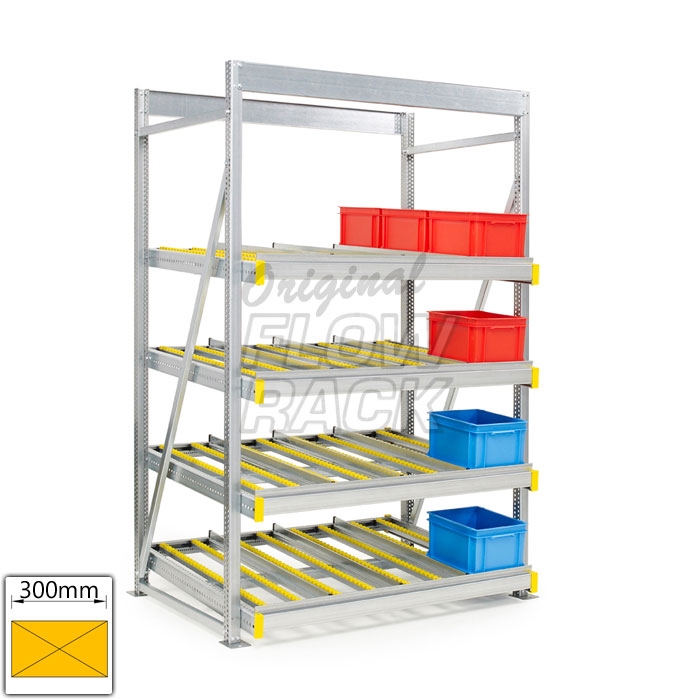

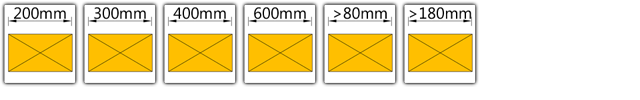

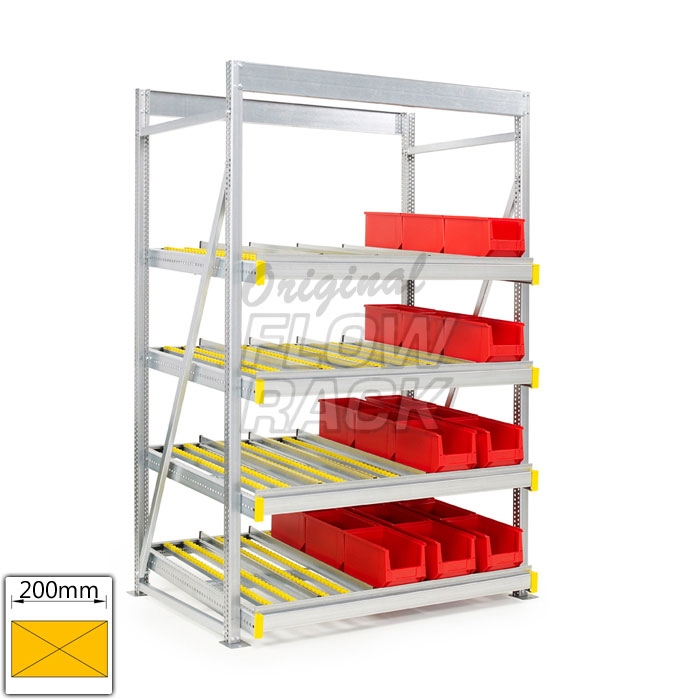

This bay width is deliverable for the following box or bin widths:
(roller carpet c/c 50 mm for >80 mm, roller carpet c/c 100 mm for >180 mm)
