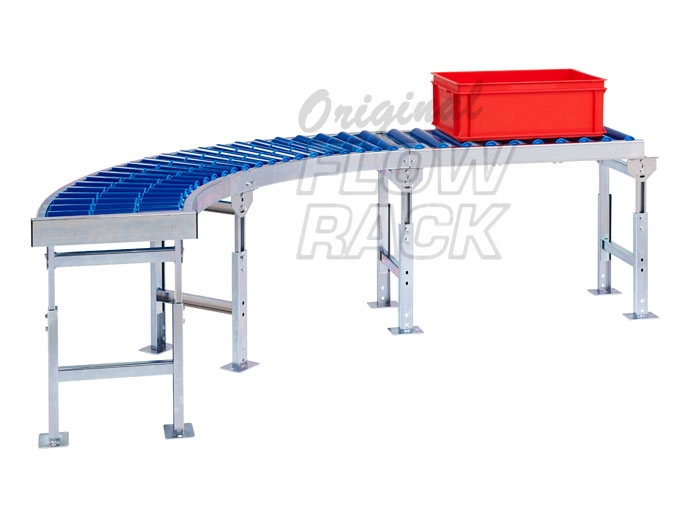

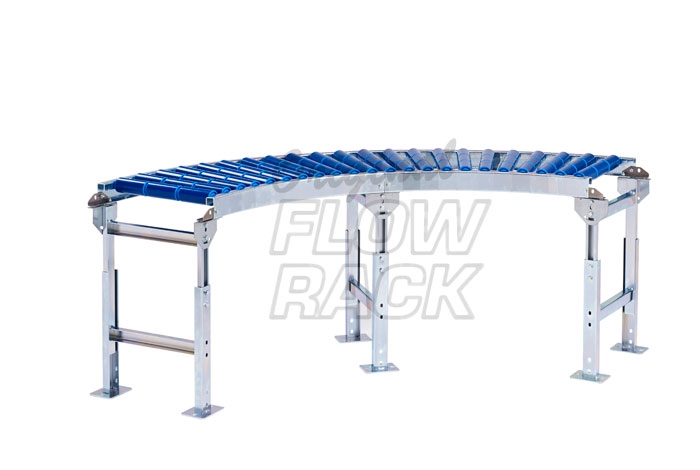

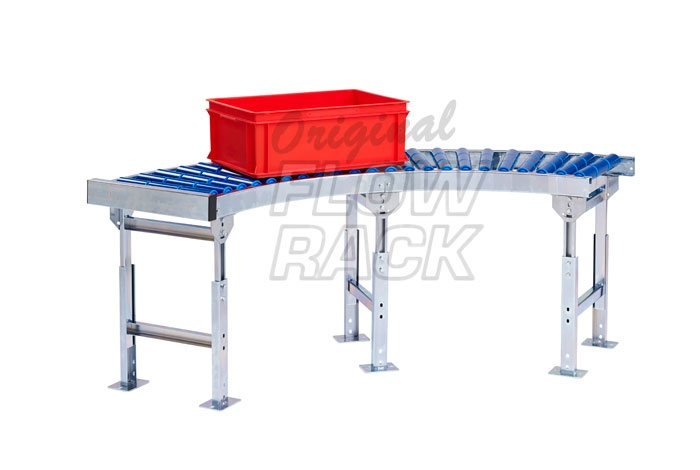

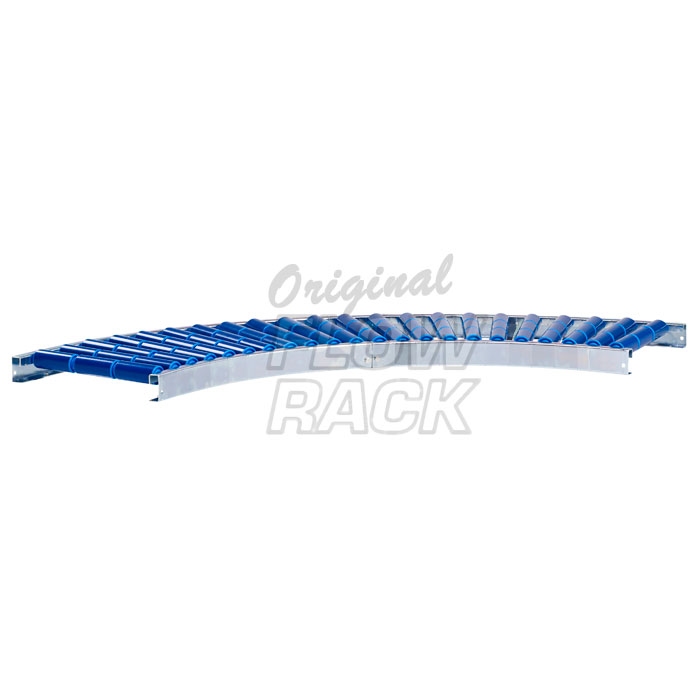

Roller conveyor curve 90°

2-piece curve

PRO+ *Prices are exclusive of VAT

Article code: DC90

Description

Sturdy curve to easily design your own roller conveyor lay-out.

With the special 3-piece curve rollers, the box follows the curve easily.

Two 45° curves are combined to make this 90° curve.

This curve also has unique closed (safe) curve profiles.

Pre-assembled delivery.

Dimensions & Technique

All parts are made out of galvanized steel.

Curves are attached by H-stands (to each other or to the roller conveyors).

Roller length 400 mm (EL).

Roller pitch, maximum 92 mm c/c

3-piece curve roller ø50 mm, RVS bearing balls, colour blue.

Solid 8 mm axle, galvanized.

22 rolls per 90° curve (2-piece), maximum roller weight capacity 15 kg/piece.

330 kg loading capacity per 90° curve (2-pieces)

Scope of delivery

2x 45° curve pre-assembled.

4x coupling bracket (with bolts/nuts).

Still needed

Stands, roller conveyors and possibly end profiles.
